1.6mm 6 Layers Fr4 ENIG 4 Oz Copper PCB , High Density Interconnect PCB Board

Name: 16mm 6 Layers Fr4 ENIG 4 Oz Copper PCB High Density Interconnect PCB Board
Brand: LEFANG
Price: 1 USD

Quality 1.6mm 6 Layers Fr4 ENIG 4 Oz Copper PCB , High Density Interconnect PCB Board wholesale

Brand Name : LEFANG

Model Number : OT6006L359

Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 290, 000sqm Per Month

Delivery Time : 2-10 work days

Packaging Details : Inner: Vacuum Packing; Dry Packing out Packing

Base Material/ Dielectric : fr - 4

Layer : 6 Layers

Surface treatment : Immersion gold

Board thickness : 1.6mm

Solder Mask : Green

Min. Aperture : 0.15mm

Line Width/Spacing : 0.15 / 0.15 mm

Size : 45 * 12 mm

Copper Thickness : 140 µm / 4 oz

Contact Now

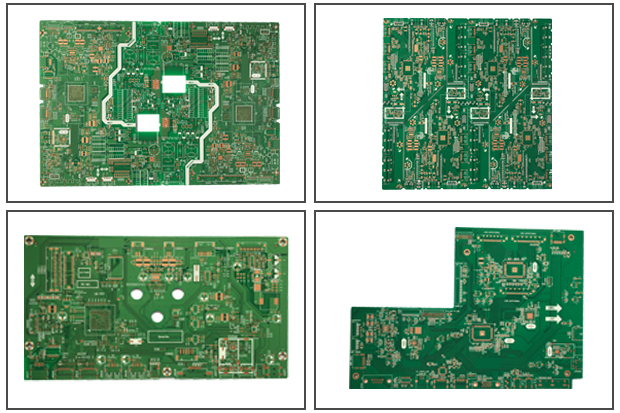

1.6mm 6 Layers Fr4 ENIG 4 OZ Heavy Copper PCB Printed Circuit Board

The copper thickness of the PCB is 4 OZ / 140 µm, which enables the board to conduct a higher current than the tradition rigid printed circuit board. While the board thickness of thick copper board is 1.6 mm, with immersion gold surface treatment and green solder mask.

1.6mm 6 Layers Fr4 ENIG 4 Oz Copper PCB , High Density Interconnect PCB Board

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - High Tg PCB
The glass transition temperature (Tg) is an important normative dimension for the base material that determines the temperature at which the resin matrix converts from a glassy, brittle condition into a soft, elastic one.
Normally high Tg refers to high heat resistance in PCB raw material.
The standard Tg for copper clad laminate is between 130 – 140℃. High Tg is generally greater than 170℃, and middle Tg is generally greater than 150℃. Basically the printed circuit board with Tg≥170℃, we call high Tg PCB.
The higher of TG value, the better of pcb high temperature resistance.
